270 degree car side tent for sun and rain protection, aluminum alloy black rubber canopy on the side, SUV outdoor quick opening, side fan-shaped tent

Feature:

• Core material: strong, tough, and durable, suitable for outdoor environments
• Fabric: Made of 420D high-density Oxford fabric as the base material, some high-end models are coated with double-layer PVC or nano-reflective layer,with excellent wear and tear resistance, able to withstand scratching by branches and impact from sand and gravel. The surface is treated with a waterproof coating of over PU3000mm, combined with seam heat welding technology, which can handle moderate to heavy rainstorms, with rainwater quickly sliding off without penetrating

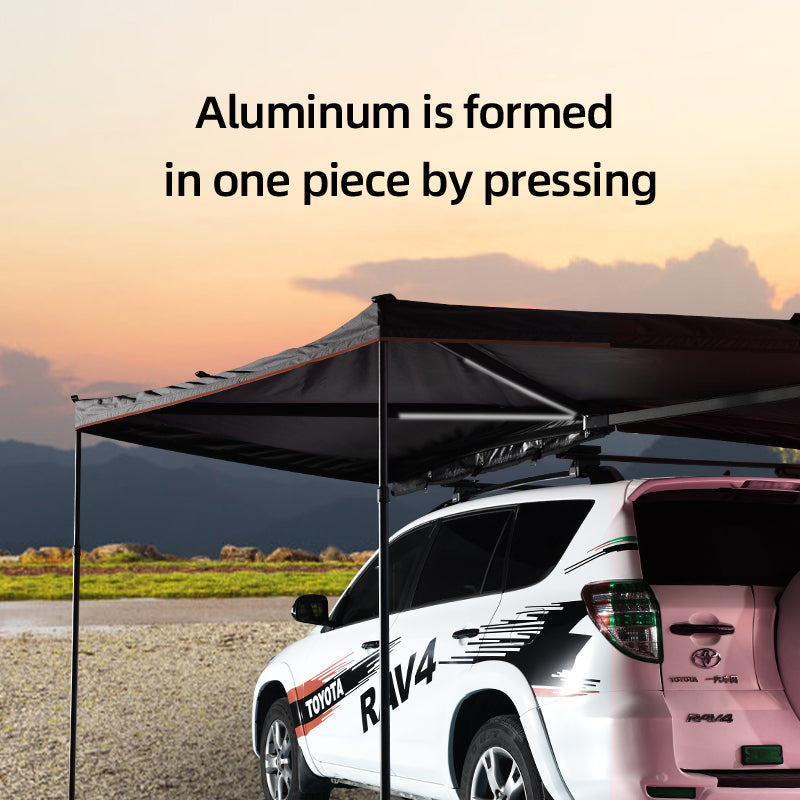

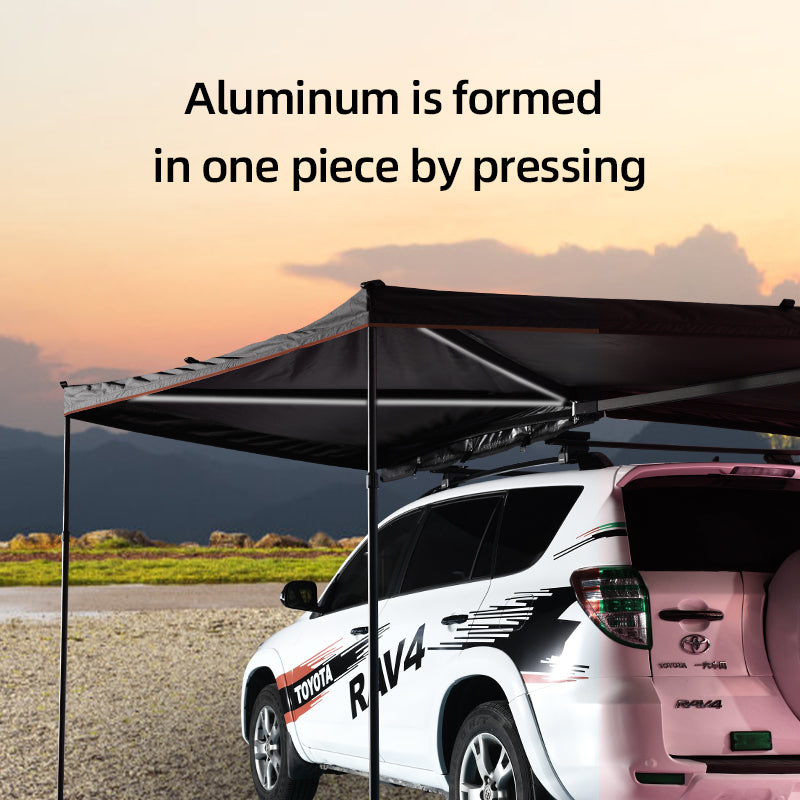

• Support structure: The main frame is made of aviation-grade aluminum alloy with a diameter of 21-23mm and a wall thickness of 1.0-1.5mm. The surface undergoes anodizing treatment, making it lightweight and corrosion-resistant. The connecting parts are made of ABS engineering plastic or 304 stainless steel, with an integrated profile design to ensure smooth and stable deployment and storage
• Core design: quick-opening mechanism + 270-degree large space
• Quick-opening structure: The integrated design of the profiles allows for automatic linkage and deployment after being fixed, eliminating the need to assemble supports segment by segment. A single person can complete the entire operation within 2 minutes. When retracting, it folds quickly, avoiding any fuss

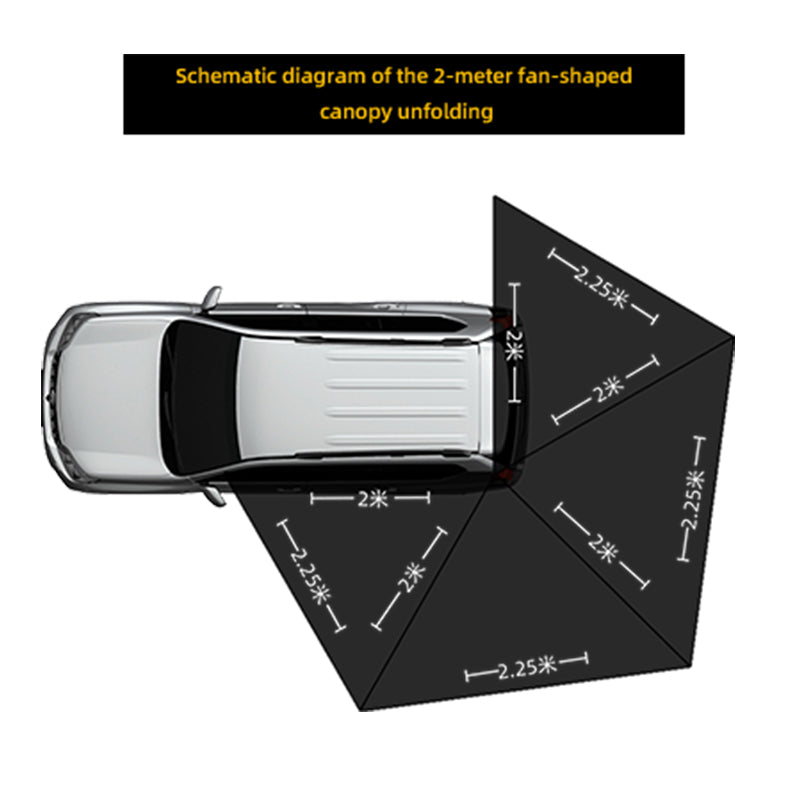

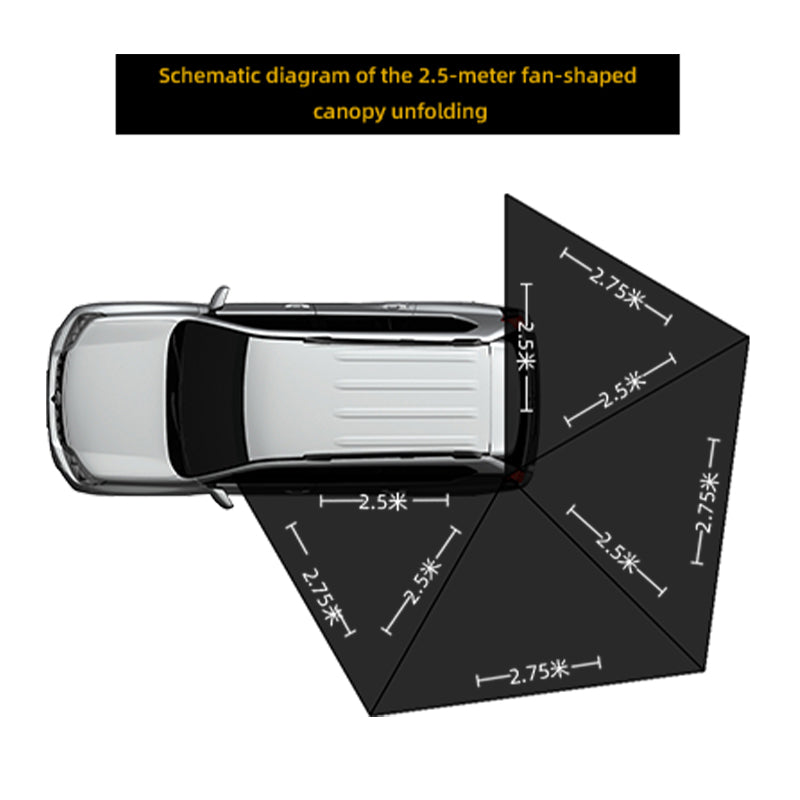

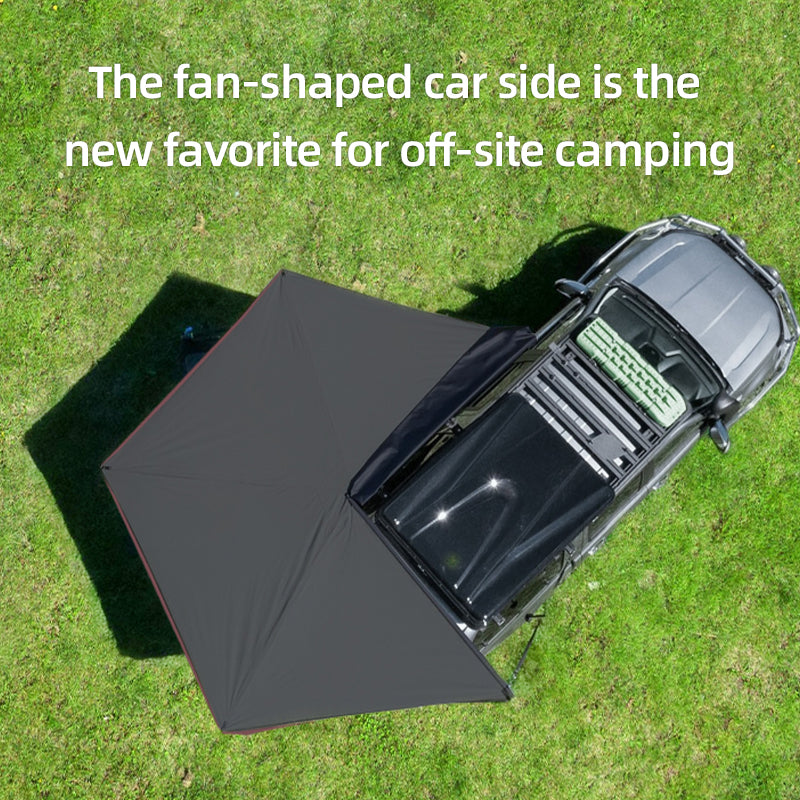

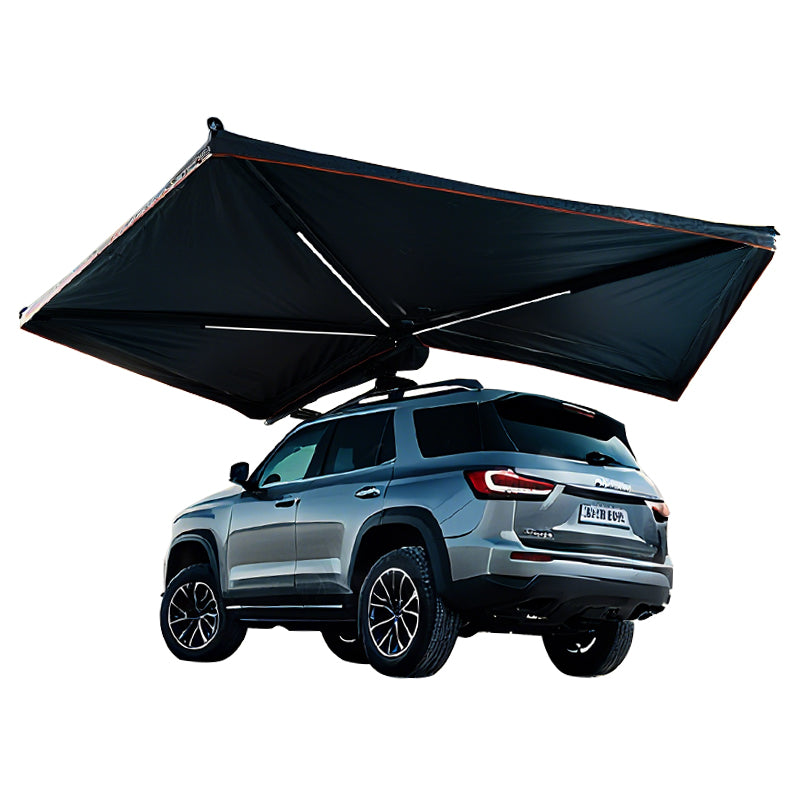

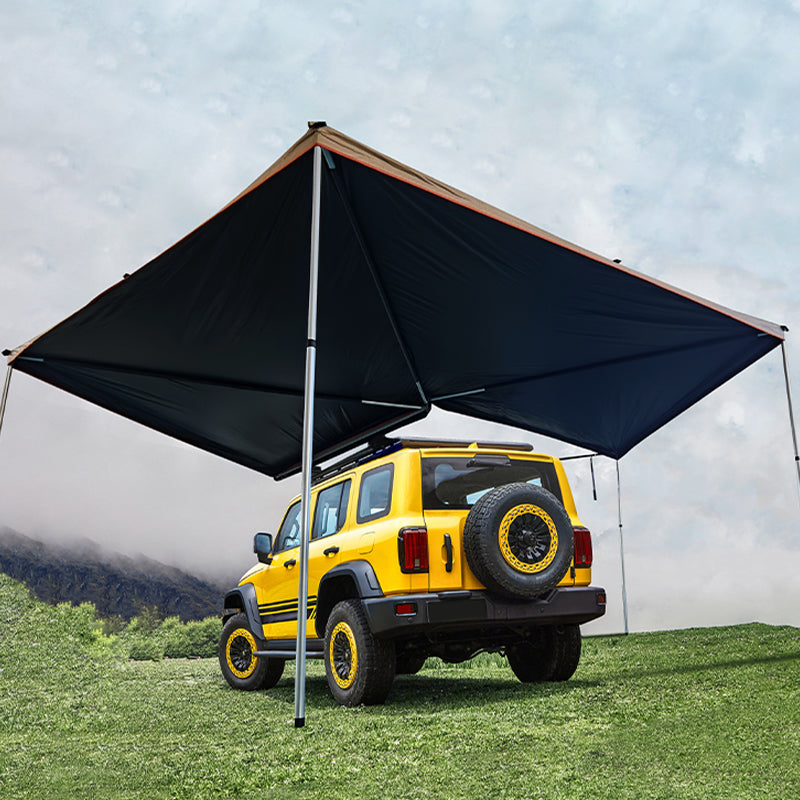

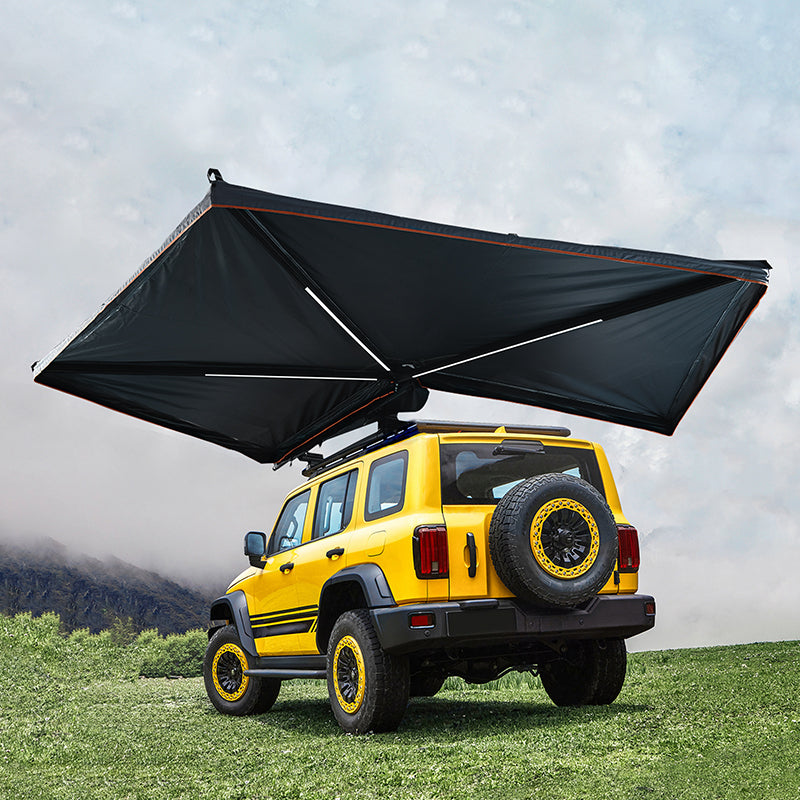

• Fan-shaped coverage: With the vehicle body as the axis, it extends 270 degrees to both sides, forming a semi-open surrounding space. The common dimensions after unfolding are 250×450×250 (width × unfolding length × height), covering an area of 3.2-4.5㎡, which can accommodate 5-12 people for simultaneous activities, almost completely enveloping one side of the vehicle
• Drainage optimization: The "adjustable pole height" inclined design is adopted, which enables the tent surface to form a natural slope towards the outside of the vehicle body. Rainwater can be quickly guided along the tent surface to the edge, avoiding water accumulation on the top and collapsing the tent. This solves the drainage problem of large-sized tent surfaces
• Practical functions: sun protection and wind resistance, strong scene adaptability

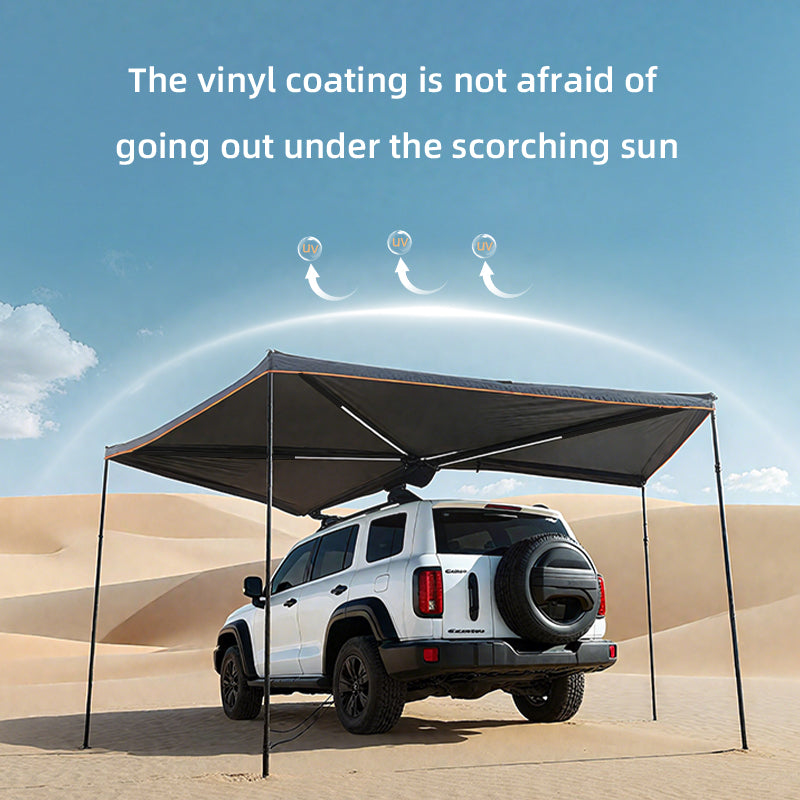

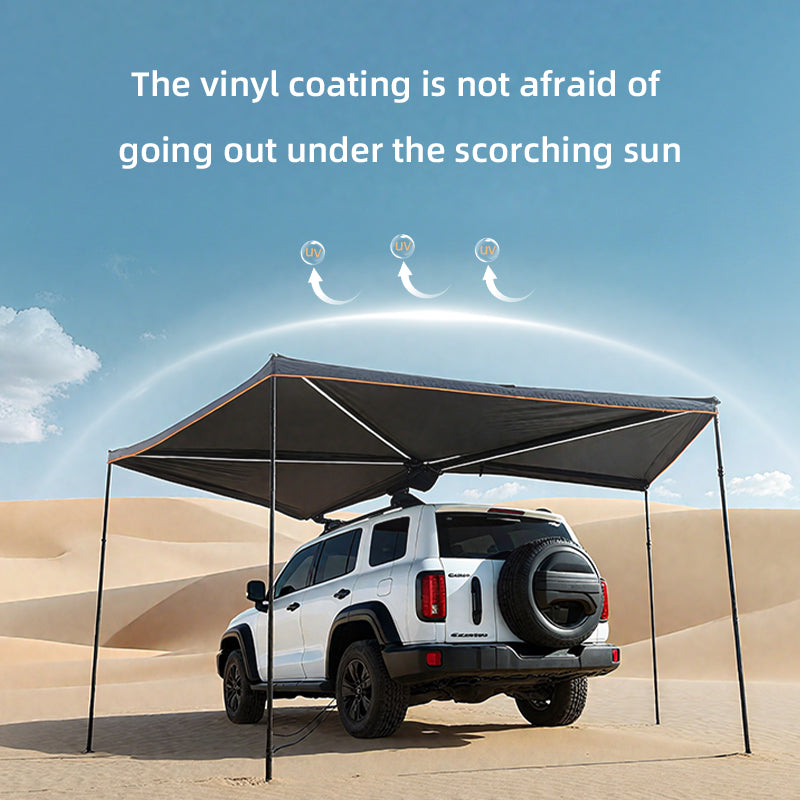

• Ultimate sun protection: The UPF value on paper is ≥50+, with an UV blocking rate exceeding 99%. The temperature inside the tent is 8-12℃ lower than the outside under direct sunlight, ensuring coolness even in strong sunlight environments such as Australia and highlands
• Robust Wind Resistance: Equipped with 4 high-strength windproof ropes and carbon steel ground nails, coupled with a multi-point rope anchoring system, it has been tested to withstand gusts of wind at level 7-8. It can be stably used in scenarios such as wind and snow on the Sichuan-Tibet route and strong winds at the seaside
• Expansion and Compatibility: Multiple hanging loops are reserved on the surface, allowing for the hanging of atmosphere lights and storage baskets. Some models support magnetic quick-release shower room modules, enabling the setup of a temporary wash area in just 3 minutes. Coupled with water storage bags and drain valves, it meets the refined needs of outdoor activities. It can also be combined with folding tables and chairs, as well as car-side cloth houses, to create a mobile camp that integrates rest, dining, and washing

Weight and portability

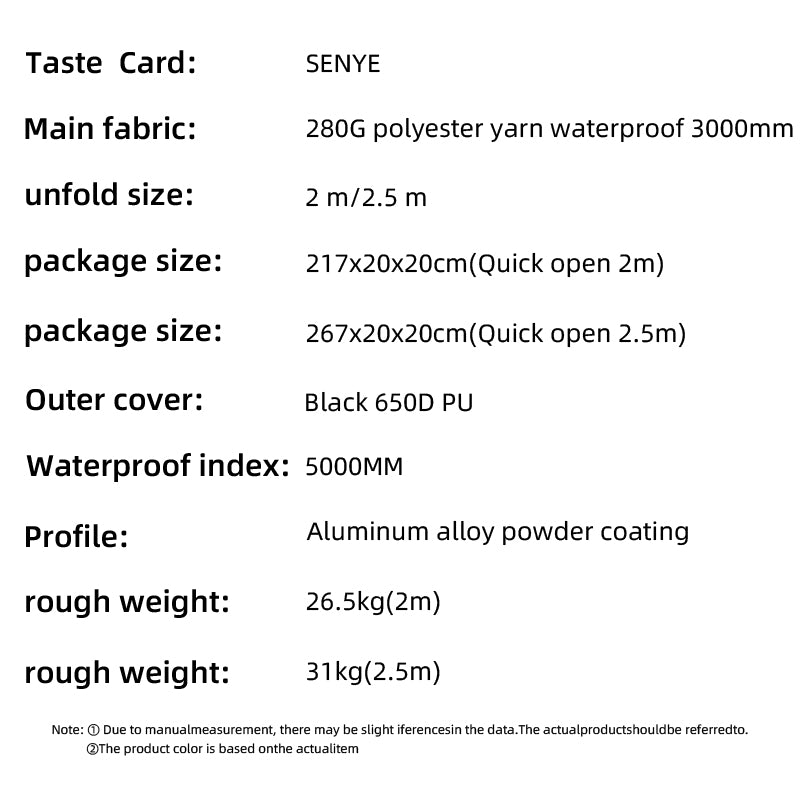

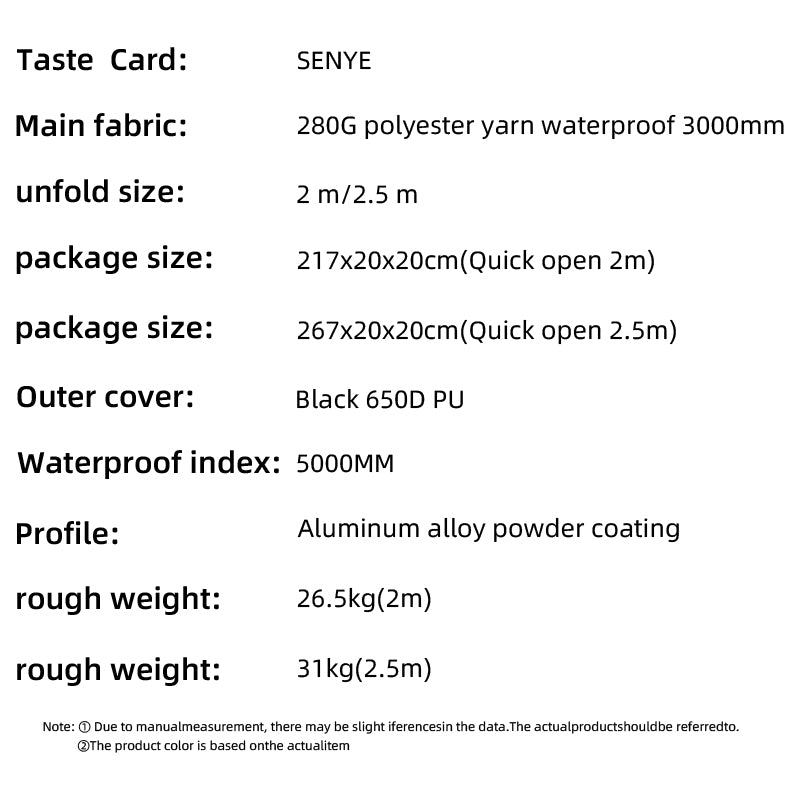

The total weight ranges from approximately 26.5kg to 31kg depending on size and configuration. Equipped with an Oxford cloth storage bag, it can be easily placed in the trunk of an SUV or secured to a roof rack for transportation, without affecting the vehicle's maneuverability

Folded size (2.5m): 250*17*13cm

Installation and applicable scenarios

Easy to install: It is fixed to the roof rack via the longitudinal beam mounting base (a flat and straight area of ≥60cm is required, with a load capacity of ≥150kg). No professional tools are needed, and it can be fixed by two people within 30 minutes. For daily use, a single person can quickly unfold and store it without the need for repeated disassembly and assembly

Applicable Scenarios: Perfectly compatible with medium and large SUVs, rugged off-road vehicles, pickups, and other models. Ideal for self-driving camping, off-road exploration, seaside vacations, family picnics, and other scenarios. Especially meets the needs of large groups for spaciousness and quick setup, capable of handling both city trips and long-distance crossings

Maintenance instructions

For daily cleaning, wipe away surface dust with a damp cloth. For stubborn stains, dip a neutral detergent and gently brush them off. After rain, promptly clean up any water pooled at the edges and allow it to air dry naturally before storing. Avoid exposing it to direct sunlight, as this can cause the fabric to age

Regularly inspect movable parts such as spring guides and hinges, and apply silicone oil to maintain smooth operation; store in a dry and ventilated place when not in use for a long time to prevent metal parts from rusting and fabric from mildewing
